Gremax

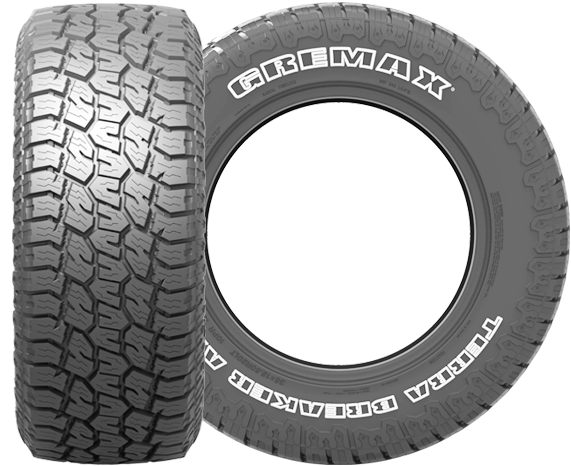

TERRA BREAKER A/T

TERRA BREAKER A/T is designed for 4x4 enthusiasts to conquer extreme traction wherever you go. Ranging from 15 to 22 inch rim diameters,TERRA BREAKER A/T is suitable for 4WDs and pick-up trucks requiring outstanding wet performance,durability and long service life.

No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
1	GA0005	31x10.50R15LT	6PR/LR C	109R	RWL	15.5	50	8.5J	10.7	30.6	2270
2	GA0006	35x12.50R15LT	6PR/LR C	113R	RWL	15.5	35	10.0J	12.5	34.5	2535
3	GA0007	LT235/85R16	10PR/LR E	120/116S	RWL	15.5	80	6.5J	9.4	31.9	3042/2778
4	GA0008	LT225/75R16	10PR/LR E	115/112R	RWL	15.5	80	6.0J	8.7	29.4	2679/2469
5	GA0009	LT245/75R16	10PR/LR E	120/116R	RWL	15.5	80	7.0J	9.8	30.6	3042/2778
6	GA0010	LT265/75R16	10PR/LR E	123/120R	RWL	15.5	80	7.5J	10.6	31.7	3415/3085
7	GA0011	LT285/75R16	10PR/LR E	126/123R	RWL	15.5	80	8.0J	11.5	32.8	3750/3417
8	GA0012	LT245/75R17	10PR/LR E	121/118R	RWL	15.5	80	7.0J	9.6	31.7	3195/2910
9	GA0013	LT265/70R17	10PR/LR E	121/118R	RWL	15.5	80	8.0J	10.7	31.9	3195/2910
10	GA0014	LT285/70R17	8PR/LR D	121/118S	RWL	15.5	80	8.5J	11.3	32.9	3195/2910
11	GA0015	LT305/65R17	10PR/LR E	121/118R	RWL	15.5	65	9.0J	12.2	32.6	3195/2910
12	GA0016	35x12.50R17LT	10PR/LR E	121R	RWL	15.5	65	10.0J	12.5	34.5	3195
13	GA0001	P225/65R17	4PR/LR D	100T	RWL	12.6	51	6.5J	8.9	28.5	1874
14	GA0002	P265/70R17	4PR/LR D	113T	RWL	12.6	51	8.0J	10.6	31.7	2535
15	GA0017	LT275/65R18	10PR/LR E	123/120S	RWL	15.5	80	8.0J	11.0	32.1	3415/3085
16	GA0018	LT275/70R18	10PR/LR E	125/122S	RWL	15.5	80	8.0J	10.8	33.3	3640/3305
17	GA0019	35x12.50R18LT	10PR/LR E	123R	RWL	15.5	65	10.0J	12.5	34.5	3415
18	GA0003	P275/65R18	4PR/LR D	114T	RWL	12.6	51	8.0J	11.1	32.0	2601
19	GA0020	LT275/65R20	10PR/LR E	126/123S	RWL	15.5	80	8.0J	11.0	34.0	3750/3415
20	GA0021	LT305/55R20	10PR/LR E	121/118R	RWL	15.5	65	9.5J	11.9	33.5	3195/2910
21	GA0022	35x12.50R20LT	10PR/LR E	121R	RWL	15.5	65	10.0J	12.5	34.5	3195
22	GA0023	35x12.50R20LT	12PR/LR F	125R	RWL	15.5	80	10.0J	12.5	34.5	3640
23	GA0004	P275/55R20	4PR/LR D	111S	RWL	12.6	50	8.5J	11.1	31.8	2403
24	GA0024	35x12.50R22LT	12PR/LR F	121R	RWL	15.5	65	10.0J	12.8	35.0	3195

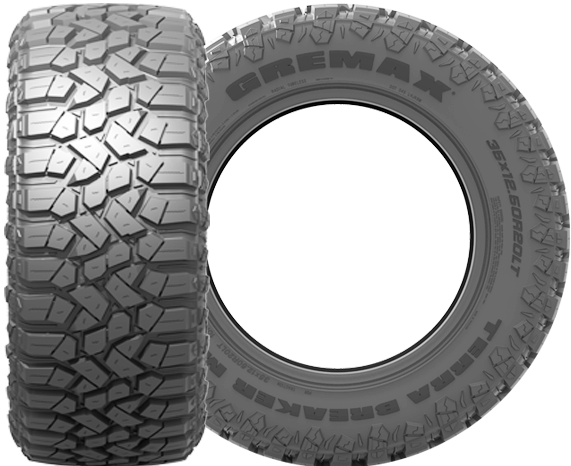

TERRA BREAKER M/T

Designed to challenge the toughest roads , the Gremax TERRA BREAKER M/T features robust Robotic Arm traction blocks, extra-deep grooves, notched and scalloped shoulder lugs to enhance your bold,aggressive off-road experience. Heavy-duty with full 3-ply construction across all sizes,with increased load capacity suitable for 3/4 and 1-ton trucks on rugged terrains.

No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	Sidewall	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
1	GM0006	33x12.50R17LT	10PR/LR E	120Q	RBL	19.5	65	10.0J	12.5	32.8	3085
2	GM0007	35x12.50R17LT	10PR/LR E	121Q	RBL	19.5	65	10.0J	12.5	34.5	3195
3	GM0012	33x12.50R18LT	10PR/LR E	118Q	RBL	19.5	65	10.0J	12.7	32.8	2910
4	GM0014	35x12.50R18LT	10PR/LR E	123Q	RBL	19.5	65	10.0J	12.5	34.5	3415
5	GM0016	33x12.50R20LT	10PR/LR E	114Q	RBL	19.5	65	10.0J	12.7	32.7	2600
6	GM0020	35x12.50R20LT	10PR/LR E	121Q	RBL	19.5	65	10.0J	12.6	34.7	3195
7	GM0022	33x12.50R22LT	10PR/LR E	109Q	RBL	19.5	65	10.0J	12.5	32.8	2270
8	GM0024	35x12.50R22LT	10PR/LR E	117Q	RBL	19.5	65	10.0J	12.5	34.8	2835
9	GM0028	35x13.50R24LT	10PR/LR E	118Q	RBL	19.5	65	11.0J	13.6	34.7	2910
10	GM0030	40x15.50R24LT	10PR/LR E	128Q	RBL	19.5	65	12.0J	15.4	39.8	3970

GD100

Close Shoulder Drive

The Gremax GD100 is a close-shoulder drive tire designed for long-haul and regional trucks and buses, especially under mixed-terrain conditions. Strong blocks and deep grooves provide aggressive traction while maintaining an even wear during operations.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GD0001	295/75R22.5	14PR/LR G	144/141M	26.5	110	9.0J	12	40	6175	5675
2	GD0002	295/75R22.5	16PR/LR H	146/143M	26.5	120	9.0J	12	40	6610	6005
3	GD0003	11R22.5	14PR/LR G	144/142M	26.5	105	8.25J	11	41	6175	5840
4	GD0004	11R22.5	16PR/LR H	146/143M	26.5	120	8.25J	11	41	6610	6005
5	GD0005	11R24.5	14PR/LR G	146/143M	26.5	105	8.25J	11	43	6610	6005
6	GD0006	11R24.5	16PR/LR H	149/146M	26.5	120	8.25J	11	43	7160	6610

GA200

All Position

The Gremax GA200 is a all-position tire with deep tread depth,specially designed for both long-haul and regional applications. High quality construction coupled with a solid shoulder and serrated center ribs provides enhanced heavy load capacity, traction and durability.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GAP001	295/75R22.5	14PR/LR G	144/141M	19.0	110	9.0J	12	40	6175	5675
2	GAP002	295/75R22.5	16PR/LR H	146/143M	19.0	120	9.0J	12	40	6610	6005
3	GAP003	11R22.5	14PR/LR G	144/142M	19.0	105	8.25J	11	41	6175	5840
4	GAP004	11R22.5	16PR/LR H	146/143M	19.0	120	8.25J	11	41	6610	6005
5	GAP005	11R24.5	14PR/LR G	146/143M	19.0	105	8.25J	11	43	6610	6005
6	GAP006	11R24.5	16PR/LR H	149/146M	19.0	120	8.25J	11	43	7160	6610

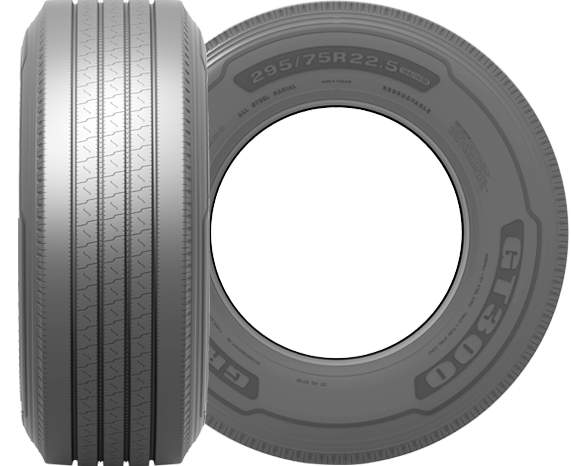

GT300

Trailer

The Gremax GT300 is a long-haul regional trailer tire suitable for spread and multi-axle trailers. Optimized tread depth improves resistance to wear and reduces tread squirm.Reinforced sipes promote traction and wire solid shoulders help to resist scrubbing .Edged blocks help enhance grip and heat dissipation efficiency as well as rolling resistance.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GT0001	295/75R22.5	14PR/LR G	144/141M	13.0	110	9.0J	12	40	6175	5675
2	GT0002	295/75R22.5	16PR/LR H	146/143M	13.0	120	9.0J	12	40	6610	6005
3	GT0003	11R22.5	14PR/LR G	144/142M	13.0	105	8.25J	11	41	6175	5840
4	GT0004	11R22.5	16PR/LR H	146/143M	13.0	120	8.25J	11	41	6610	6005

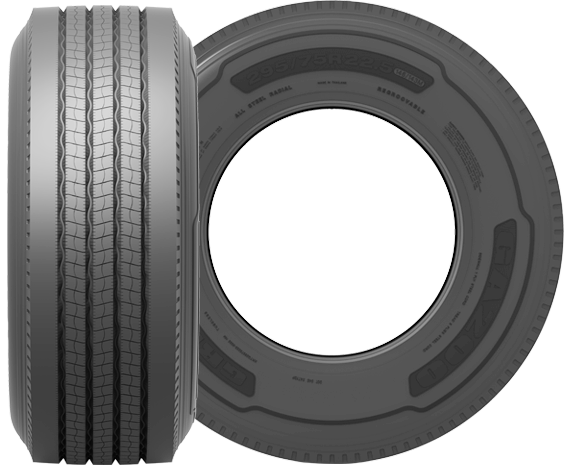

GS500

Premium Steer

The Gremax GS500 is a budget-friendly steer tire made for long-haul and regional pick-up and delivery trucks. The five-rib pattern and geometrical blocks offer superb steering and handling performance.Wide solid shoulders provide even load distribution,while enhanced sipes and wide grooves delivering excellent wet and dry performance.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GS0001	295/75R22.5	14PR/LR G	144/141M	19.0	110	9.0J	12	40	6175	5675
2	GS0002	295/75R22.5	16PR/LR H	146/143M	19.0	120	9.0J	12	40	6610	6005

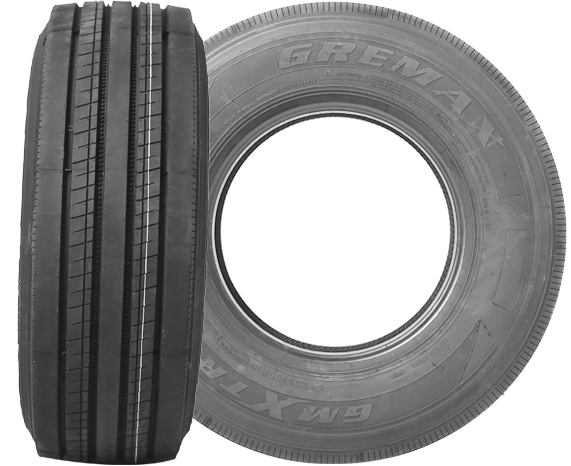

GMXTRA

Premium All-Steel ST

The GMXTRA is a premium all-steel special trailer tire that offers heavy duty hauling capabilities for large equipment and heavy loads by its robust construction. It delivers a superior strength load when towing. The flat footprint and the ribbed tread design enhance the steering and the driving stability at all times. The stronger internal structure of GMXTRA allows the tire to carry heavy loads with ease.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GMEX01	ST235/80R16	16PR/LR H	130/126M	12.0	110	6.5J	9.3	30.7	4190	3750
2	GMEX02	ST235/85R16	16PR/LR H	133/128M	12.0	110	6.5J	9.3	31.7	4540	3970

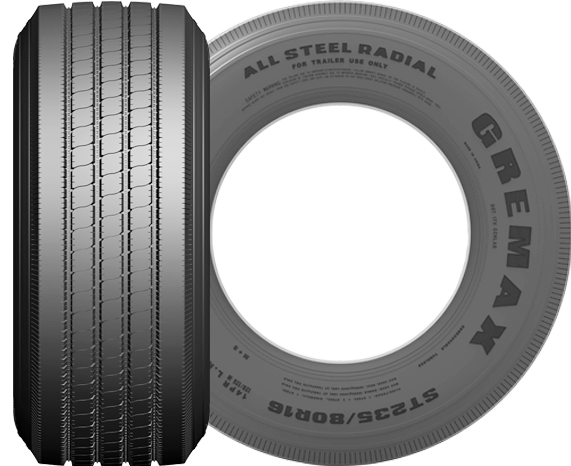

GM500

All-Steel ST

The Gremax GM500 is an all-steel special trailer tire with enhanced compound structure and contour construction,made for high load capacity on trailer axles. The heavy duty all-steel construction delivers superior strength and durability while providing enhanced traction.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GM50001	ST235/80R16	14PR/LR G	129/125M	12.0	110	6.5J	9.3	30.8	4080	3640
2	GM50002	ST235/85R16	14PR/LR G	132/127M	12.0	110	6.5J	9.3	31.7	4400	3860
3	GM50003	ST225/75R15	14PR/LR G	124/121M	11.0	95	6.0J	8.8	28.3	3520	3197

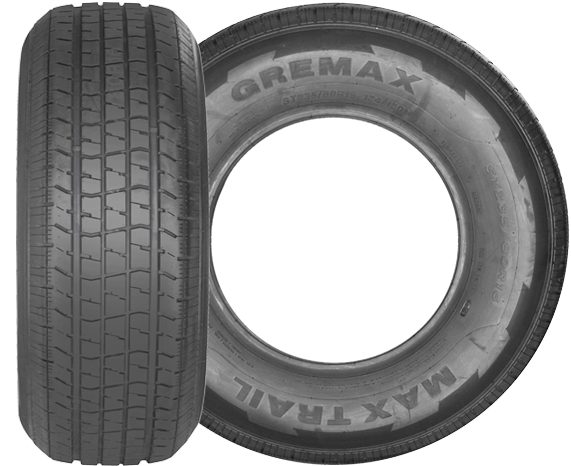

MAX TRAIL

Semi-Steel ST

The Gremax Max Trail is a semi-steel special trailer tire engineered for higher load capacity. Providing year-round traction, durability and increased mileage.

No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Max Load (lbs)
No.	Item No.	Size	Ply Rating	L / S	TD (32nds)	Air Pres. （psi）	Rim	SW (in)	OD (in)	Single	Dual
1	GRE001	ST175/80R13	6PR	91/87M	8.3	50	5.0J	6.8	23.7	1360	1200
2	GRE002	ST175/80R13	8PR	97/93M	8.3	65	5.0J	6.8	23.7	1610	1430
3	GRE003	ST205/75R14	6PR	100/96M	8.3	50	5.5J	7.7	25.7	1760	1570
4	GRE004	ST205/75R14	8PR	105/101M	8.3	65	5.5J	7.7	25.7	2040	1820
5	GRE005	ST215/75R14	6PR	102/98M	8.3	50	6.0J	8.2	8.2	1870	1650
6	GRE006	ST215/75R14	8PR	108/103M	8.3	65	6.0J	8.2	8.2	2200	1930
7	GRE007	ST205/75R15	6PR	101/97M	8.3	50	5.5J	7.7	25.7	1820	1610
8	GRE008	ST205/75R15	8PR	107/102M	8.3	65	5.5J	7.7	25.7	2150	1870
9	GRE013	ST205/75R15	10PR	111/106M	8.3	80	5.5J	7.7	25.7	2400	2090
10	GRE009	ST225/75R15	8PR	113/108M	8.3	65	6.0J	8.4	8.4	2540	2200
11	GRE010	ST225/75R15	10PR	117/112M	8.3	80	6.0J	8.4	8.4	2830	2470
12	GRE011	ST235/80R16	10PR	124/120M	8.3	80	6.5J	8.5	8.5	3520	3080
13	GRE012	ST235/85R16	12PR	128/124M	8.3	95	6.5J	8.3	8.3	3960	3520
